WSN BASED SMART SENSORS AND ACTUATLAORS FOR POWER MANAGEMENT IN INTELLIGENT BUILDINGS 1 By N.HARISHA
Contents  Aim of the project  Introduction of the project  Existing System drawbacks  Things we need  Block diagram  Advantages  Applications 2 Geethanjali institute of science and technology
Aim of the project To develop a system based a embedded microcontroller, which is used for controlling various appliances at home using wireless sensors networks like wi-fi, zig-bee, etc. 3 Geethanjali institute of science and technology
Introduction of the project  Design and development of a smart monitoring and controlling system for household electrical appliances in real time has been reported . The system principally monitors electrical parameters of household appliances such as voltage and current and subsequently calculates the power consumed. 4 Geethanjali institute of science and technology
Existing system Drawbacks  Energy consumption control mechanism is limited to only certain devices like light illuminations, whereas several household appliances can be controlled.  Energy control is based on fixed threshold power consumption, which may not be applicable to different consumers.  Controlling the home appliances through network management functions, in practice inhabitant requirements may vary according to their behavior but not with network characteristics. 5
Proposed system  ZigBee-based intelligent home energy management and control service.  ZigBee (the IEEE 802.15.4 standard) technology for networking and communication, because it has characteristics that enables to be widely used in home and building environments.  Human-friendly technical solutions for monitoring and easy control of household appliances. 6

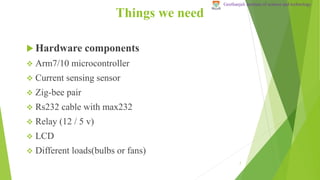

Things we need  Hardware components  Arm7/10 microcontroller  Current sensing sensor  Zig-bee pair  Rs232 cable with max232  Relay (12 / 5 v)  LCD  Different loads(bulbs or fans) 7 Geethanjali institute of science and technology
Software components  Embedded c  Keil c compiler  Flash magic 8 Geethanjali institute of science and technology
Micro Controller TRIAC LOAD3 LCD Display Power Supply 230-50Hz Current Sensor MAX232 Low Side Power Supply 5 or 3.3v TRIAC LOAD1 TRIAC LOAD2 Slave mode 9 Geethanjali institute of science and technology
Master mode PC Power Supply Keys 10 Geethanjali institute of science and technology
Advantages  Energy efficiency  Simplification of complex tasks  Save time and effort  Secure your home safely  Prevents wastage of electricity 11 Geethanjali institute of science and technology
Applications  WSNs has been applied in many fields such as Military Industry Environmental Monitoring Healthcare. Regular Household Appliances 12 Geethanjali institute of science and technology
THANK YOU QUERIES…. 13
