HVAC System

H.V.A.C. SYSTEM

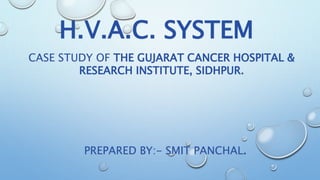

CASE STUDY OF THE GUJARAT CANCER HOSPITAL &
RESEARCH INSTITUTE, SIDHPUR.
PREPARED BY:- SMIT PANCHAL.

H.V.A.C. SYSTEM
• WHAT IS H.V.A.C…?
• H. - HEATING
• V. - VENTILATION
• A.C. - AIR
CONDITIONING

H.V.A.C. SYSTEM
• HVAC SYSTEMS CONTROL THE ENVIRONMENT
FOR PEOPLE AND EQUIPMENT IN OUR FACILITIES.
• HVAC SYSTEMS AND CHILLERS ARE ALSO
SIGNIFICANT ENERGY CONSUMERS IN MANY
MANUFACTURING FACILITIES.
INTRODUCTION…

H.V.A.C. SYSTEM
• THE PURPOSE OF A HEATING, VENTILATING AND AIR
CONDITIONING(HVAC) SYSTEM IS TO PROVIDE AND
MAINTAIN A COMFORTABLE AND SAFE ENVIRONMENT
WITHIN A BUILDING FOR THE OCCUPANTS OR FOR THE
PROCESS BEING CONDUCTED.
• MANY HVAC SYSTEMS WERE NOT DESIGNED WITH
ENERGY EFFICIENCY AS ONE OF THE DESIGN FACTORS.
FUNCTION…

H.V.A.C. SYSTEM
• CONTROL OF AIR TEMPERATURE.
• CONTROL OF MOISTURE CONTENTIN THE AIR.
• PROPER AIR MOVEMENT
• TO HOLD THE AIR CONTAMINATION WITHIN
ACCEPTABLE LIMITS.
CONT,…

H.V.A.C. SYSTEM
• SHOPPING MALLS
• AUDITORIUMS AND THEATRES
• HOSPITALS
• HOTELS AND RESTAURANTS
• OFFICES
• COMMERCIAL COMPLEX
• LUXURY APPARTMENTS
• INFOTECH PARKS
• PHARMA INDUSTRY
• TELECOM INDUSTRY……. AND MANY MORE,…
VARIOUS APPLICATIONS OF AIR CONDITIONING…

H.V.A.C. SYSTEM
• ALSO CALLED REFRIGERATION TON(RT), IS A UNIT OF
POWER USED TO DESCRIBE THE HEAT EXTRACTION
CAPACITY OF REFRIGERATION AND AIR CONDITIONING
EQUIPMENT.
• 1 TR IS AMOUNT OF HEAT TOBE EXTRACTED FROM THE
ATMOSPHERE FOR THE MELTING ONE METRIC TON OF
ICE IN 24 HOURS.
• ONE TON OF REFRIGERATION (TR) EQUALS TO 12000
BTU/HR OR 3025 KCAL/HR.
WHAT IS TR(TON OF REFRIGERATION)…?

H.V.A.C. SYSTEM
• COMPRESSOR
• CONDENSER
• THROTTLING DEVICE
• EVAPORATOR
BASIC COMPONENTS OF AIR CONDITIONING…

H.V.A.C. SYSTEM
VARIOUS AC SYSTEM

H.V.A.C. SYSTEM
• AIR COOLED TYPE
• WATER COOLED TYPE
TYPES OF CHILLERS…

H.V.A.C. SYSTEM
• RECIPROCATING TYPE
• ROTARY TYPE
• SCROLL TYPE
• SCREW TYPE
• CENTRIFUGAL TYPE
TYPES OF COMPRESSORS…

HEATING, VENTILATING AND AIR-
CONDITIONING (HVAC) SYSTEMS.
THE PURPOSE OF HVAC DESIGN
o HIGH INDOOR AIR QUALITY AND
o ENERGY EFFICIENCY
o CONTROL OF AIR TEMPERATURE
o CONTROL OFMOISTURE CONTENTIN AIR
o PROPER AIR MOVEMENT

BASIC COMPONENTS OF AIR CONDITIONING
o PRIMARY PUMP – TO PRESSURIZE WATER
o SECONDARY PUMP – TO SUCTION WATER
o PRESSURIZATION UNIT (TO ADD WATER)
o EXPANSION TANK (TO MAINTAIN WATER LEVEL)
o CHILLER
o AIR HANDLING UNIT
ALL DATA IS AS PER CASESTUDY IT DOESN’T INCLUDE ALL TYPES OF HVAC SYSTEM DETAILS OR LAY

ABBREVIATIONS
o CFM – CUBIC FEET PER METER (TO DETERMINE THE AMOUNT OF AIR
o TR – TON OF REFRIGERATION
o AHU – AIR HANDLING UNIT
AIR DIFFUSER
o AIR DISTRIBUTION OUTLET
o LOCATED IN THE CEILING
GRILLES (RETURN GRILL)
o AN AIR RETURN IS A VENT GRILLE
o LOCATED IN THE CEILING
o PURPOSE TO EXTRACT AIR FROM A ROOM AND RECYCLE IT THROUGH

CHILLER CHILLER
EXPANSION TANK
(TO MAINTAIN WATER LEVEL)
PRESSUIZATION UNIT
(TO ADD WATER)
PRIMARY PUMP
PRESSURIZE WATER
SECONDARY PUMP
SUCTION WATER

VOLTAS CHILLER
o TYPE: SCREW CHILLER
o CAPACITY: 100 TR
o MODEL: R134A
AIR HANDLING UNIT
o INLET DUCT
o OUTLET DUCT

ALL DATA IS AS PER CASESTUDY IT DOESN’T INCLUDE ALL TYPES OF HVAC SYSTEM DETAILS OR LAYO
DETAILED PLAN OF AIR CONDITION
SHOWING:
o AHU
o RETURN AIR DUCT
o DUCT
o DIFFUSER

ALL DATA IS AS PER CASESTUDY IT DOESN’T INCLUDE ALL TYPES OF HVAC SYSTEM DETAILS OR LAYO

AIR HANDLING UNIT (AHU)
ROOM
WITH
DEFINED
REQUIREMENTS
SUPPLY
AIR
OUTLET
AIR
