Android app for displaying data from the Qingping CGD1 - Bluetooth LE alarm clock with sensors.

• Warning
• Features
• Technical Details
• Screenshots
• Protocol Specification
  • 1. Service & Characteristics Profile
  • 2. Authentication (Two-Step Token Protocol)
    • 2.1. Time Synchronization
  • 3. Managing Alarms
    • 3.1. Set Alarm
    • 3.2. Delete Alarm
    • 3.3. Read Alarms
  • 4. Device Settings
    • 4.1. Set Immediate Brightness (Preview)
    • 4.2. Preview Ringtone
  • 5. Real-Time Sensor Stream
  • 6. Battery Level
  • 7. Firmware Version
  • 8. Audio Transfer Protocol (Ringtone Upload)
    • Known Ringtone Signatures
    • Custom Ringtone Slots
    • Custom Ringtone JSON Manifest
    • Upload Protocol
  • 9. Known Command IDs Summary
  • 10. GATT Disconnection Status Codes

App was largely created using LLMs. I still have reviewed the code, so it's only semi-slop, but you have been warned, etc., etc.

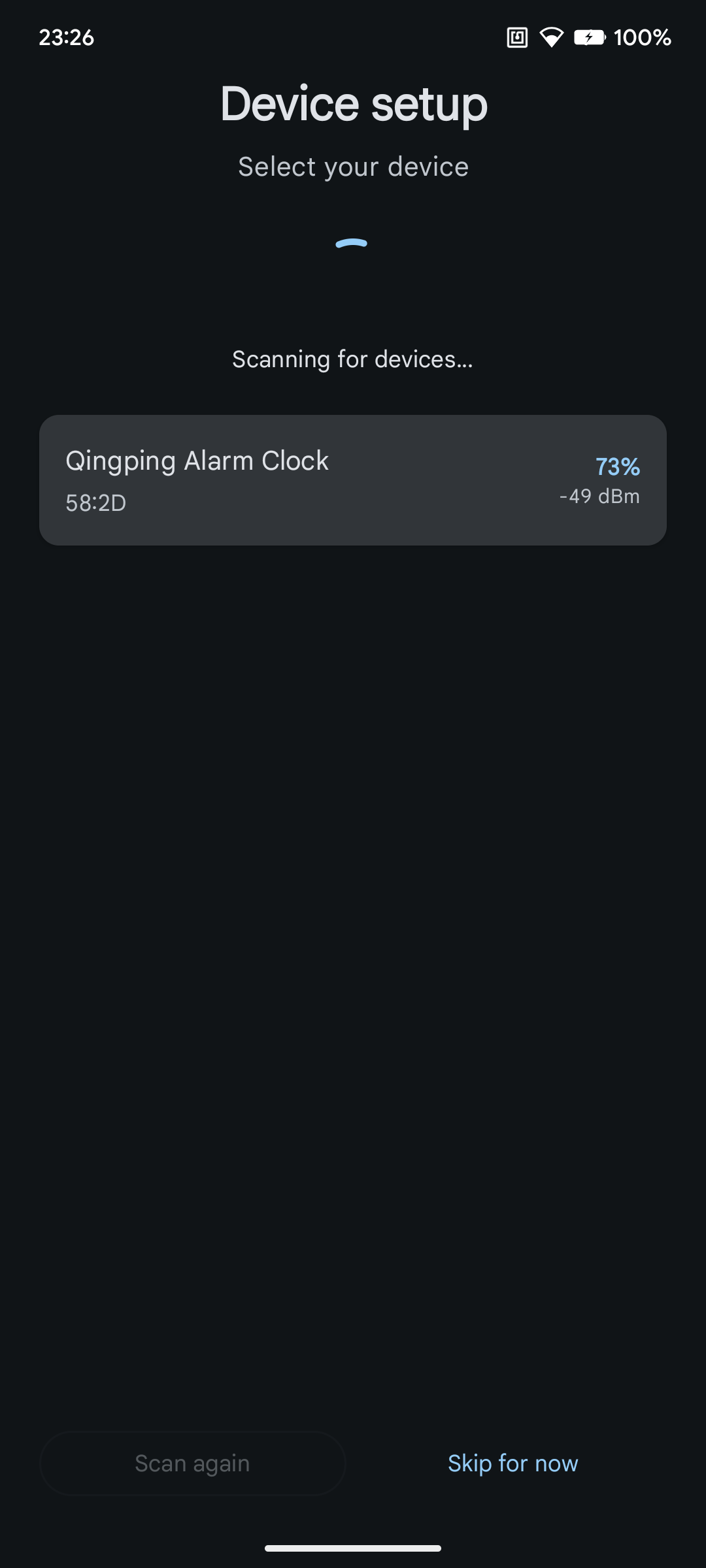

• Initial setup screen to guide the user through finding and selecting their device
• Scans for a specific Bluetooth LE device by its MAC address

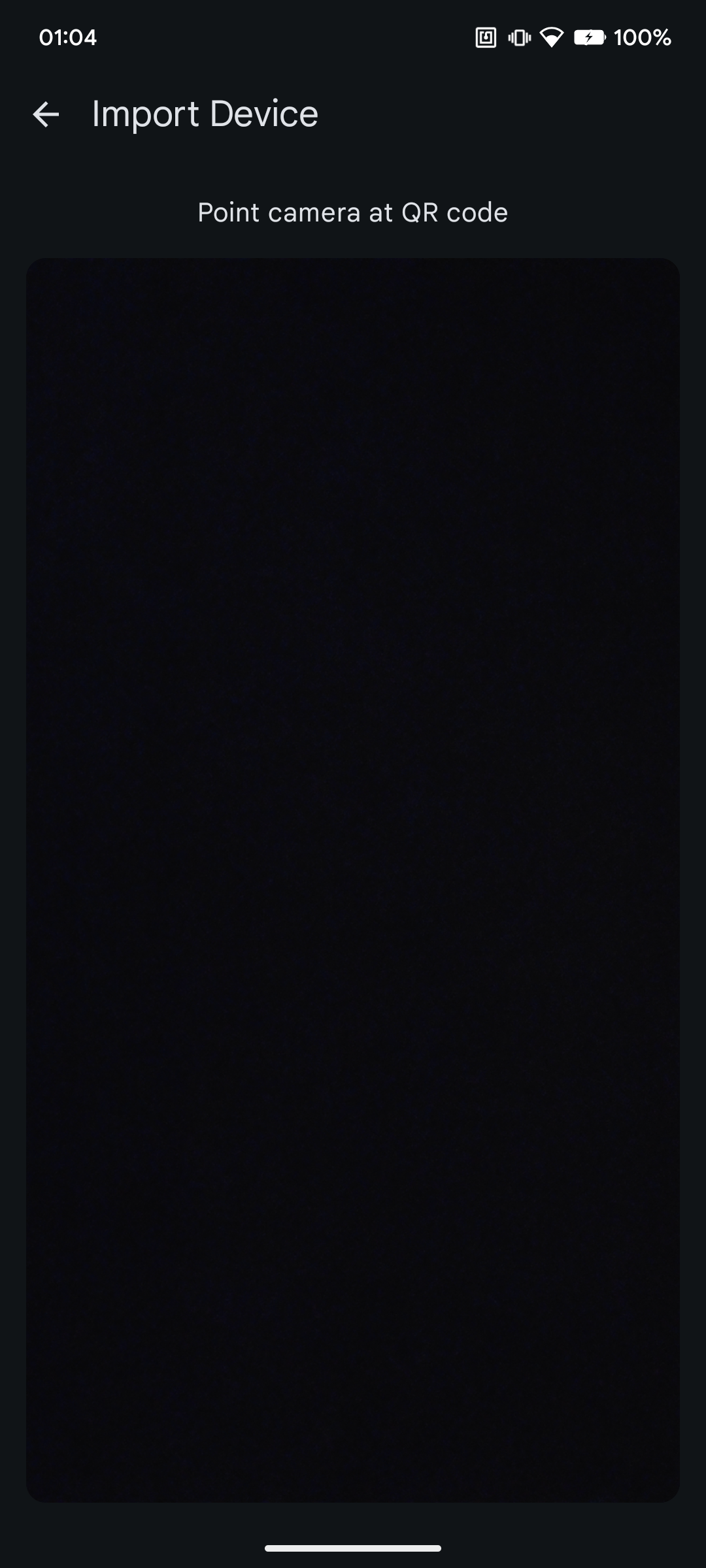

• Share a saved device with others using QR code

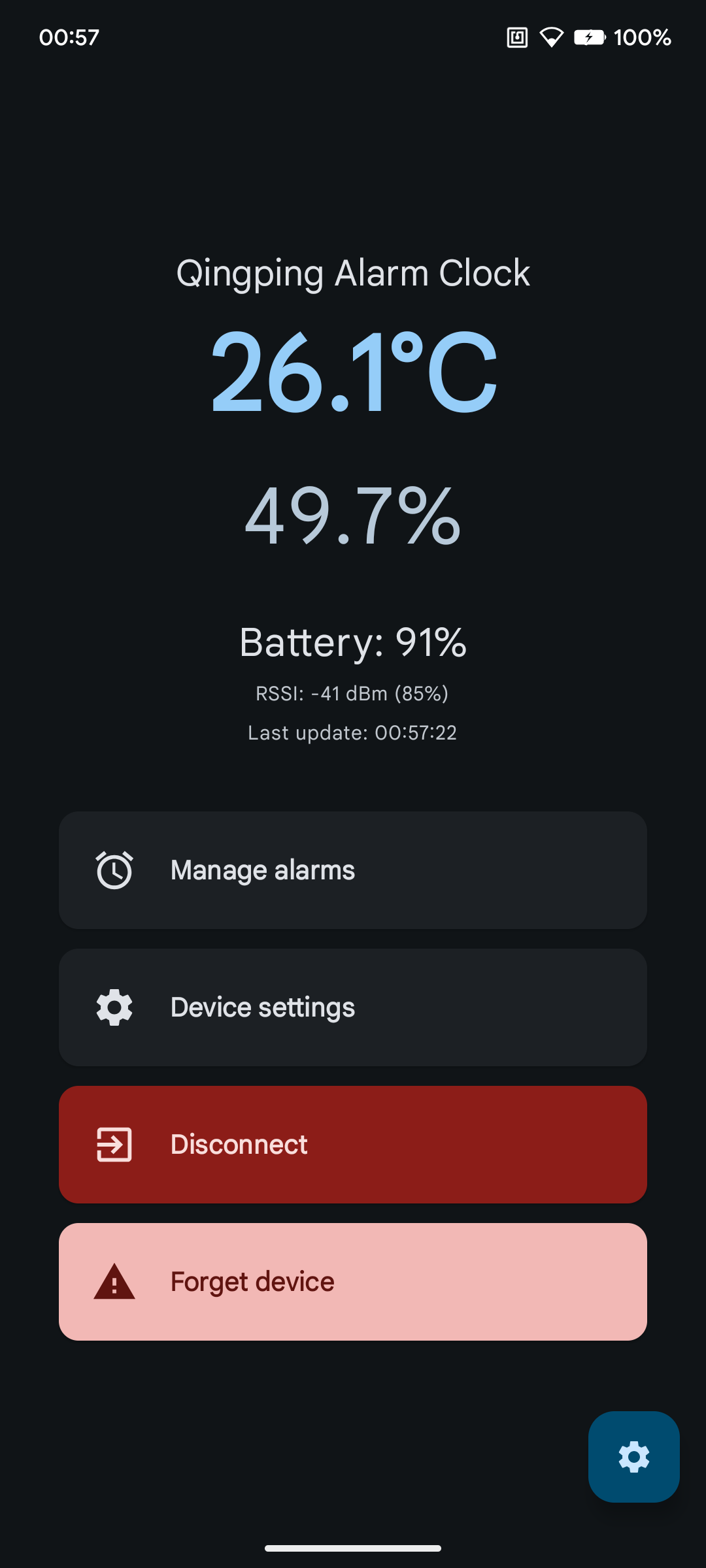

• Parses and displays sensor data

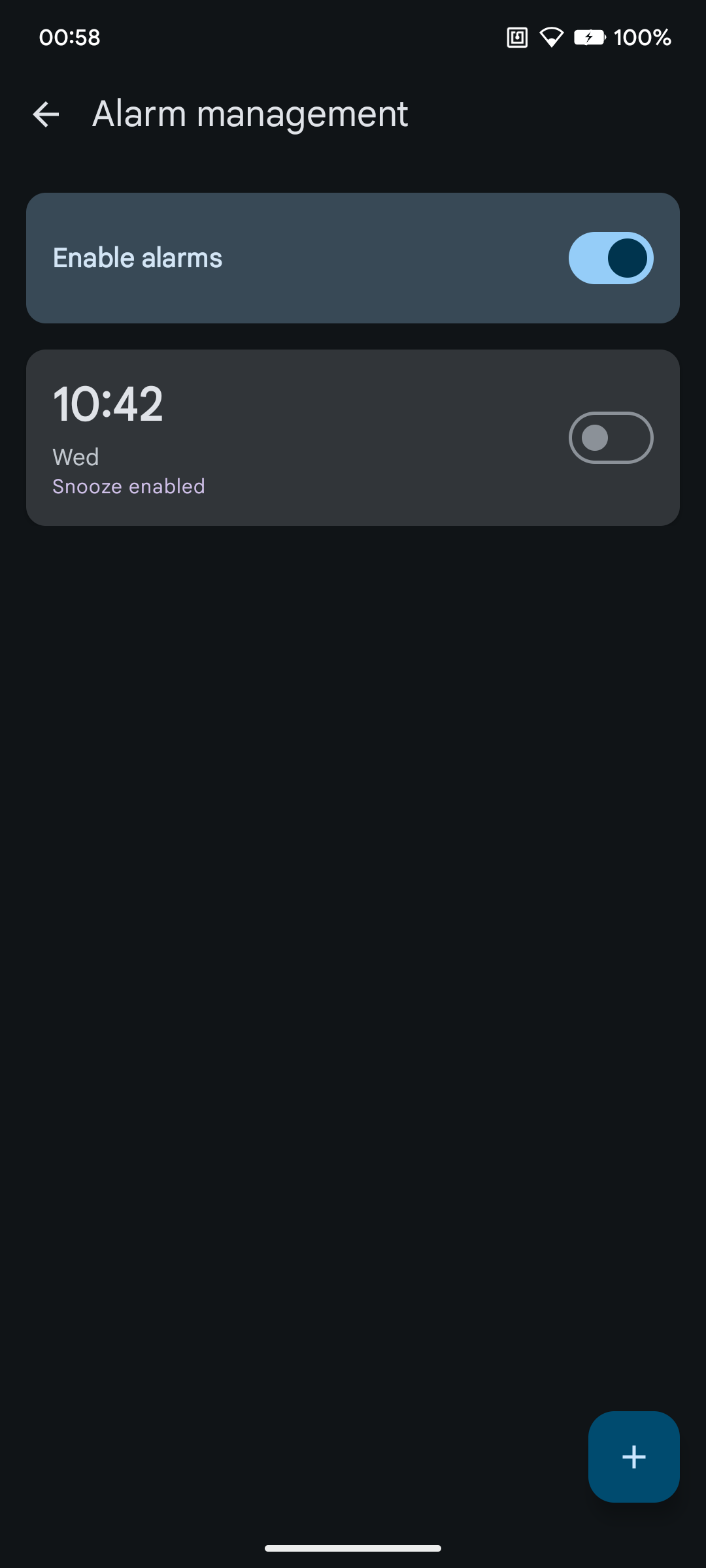

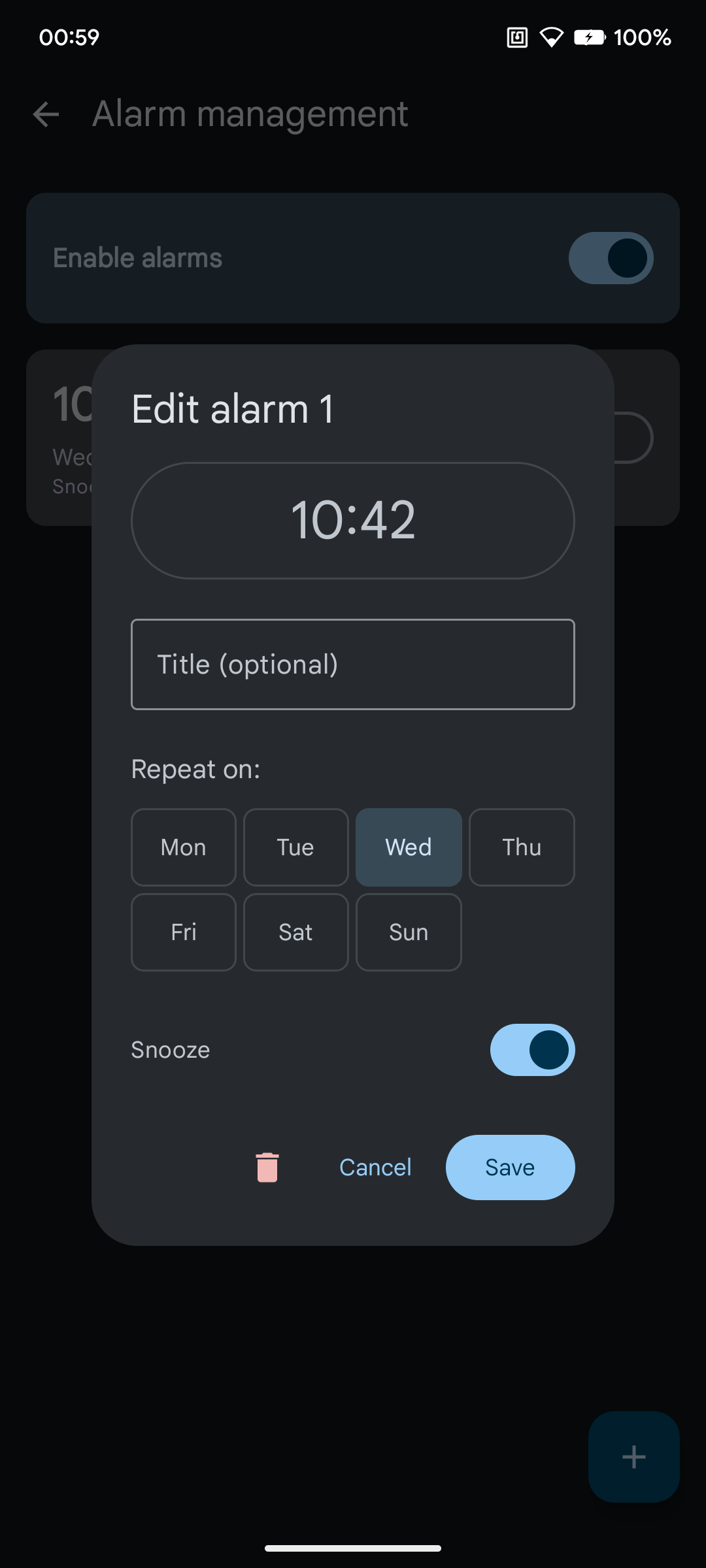

• Management of up to 16 device alarms

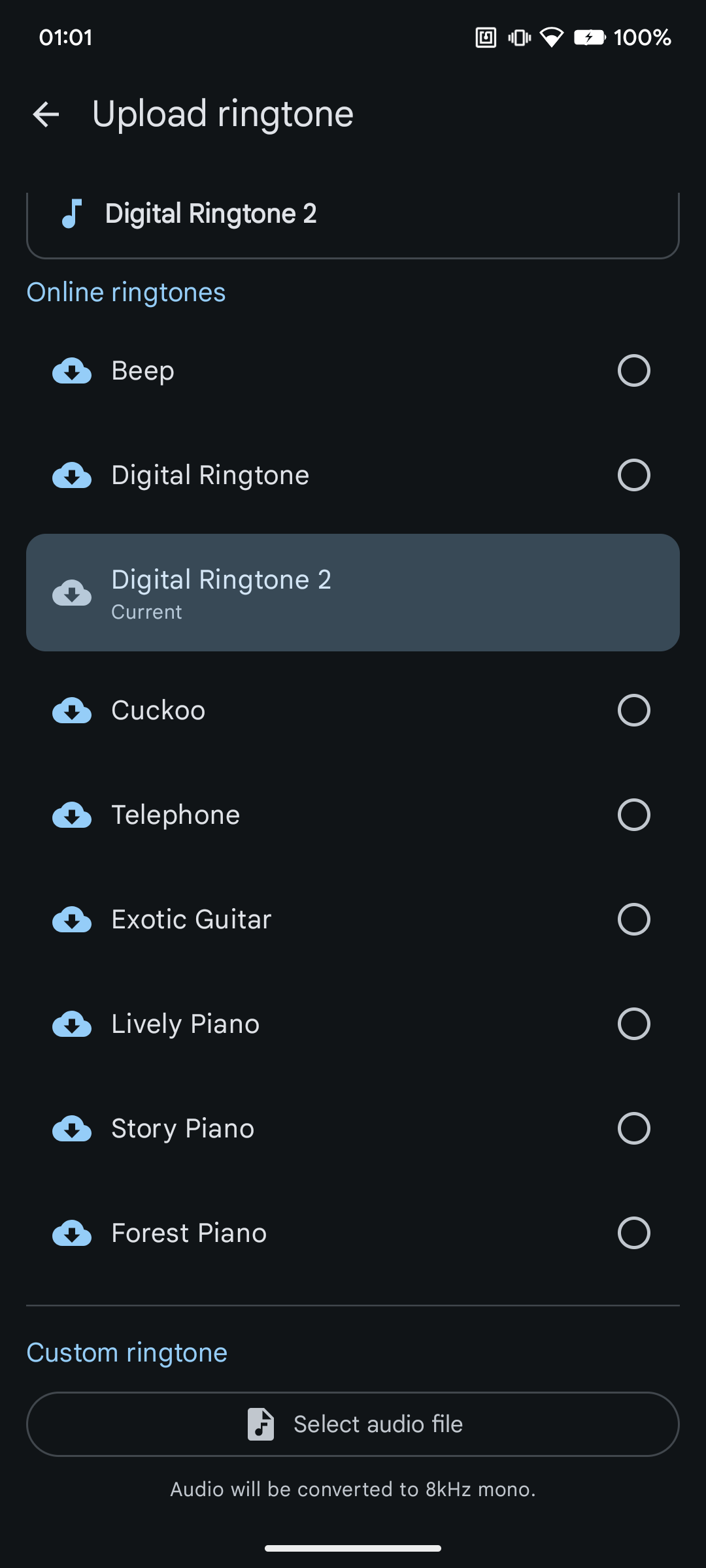

• Custom ringtones uploading
• Global alarm switch to enable or disable all device alarms at once
• Bluetooth state monitoring with automatic prompts to enable it

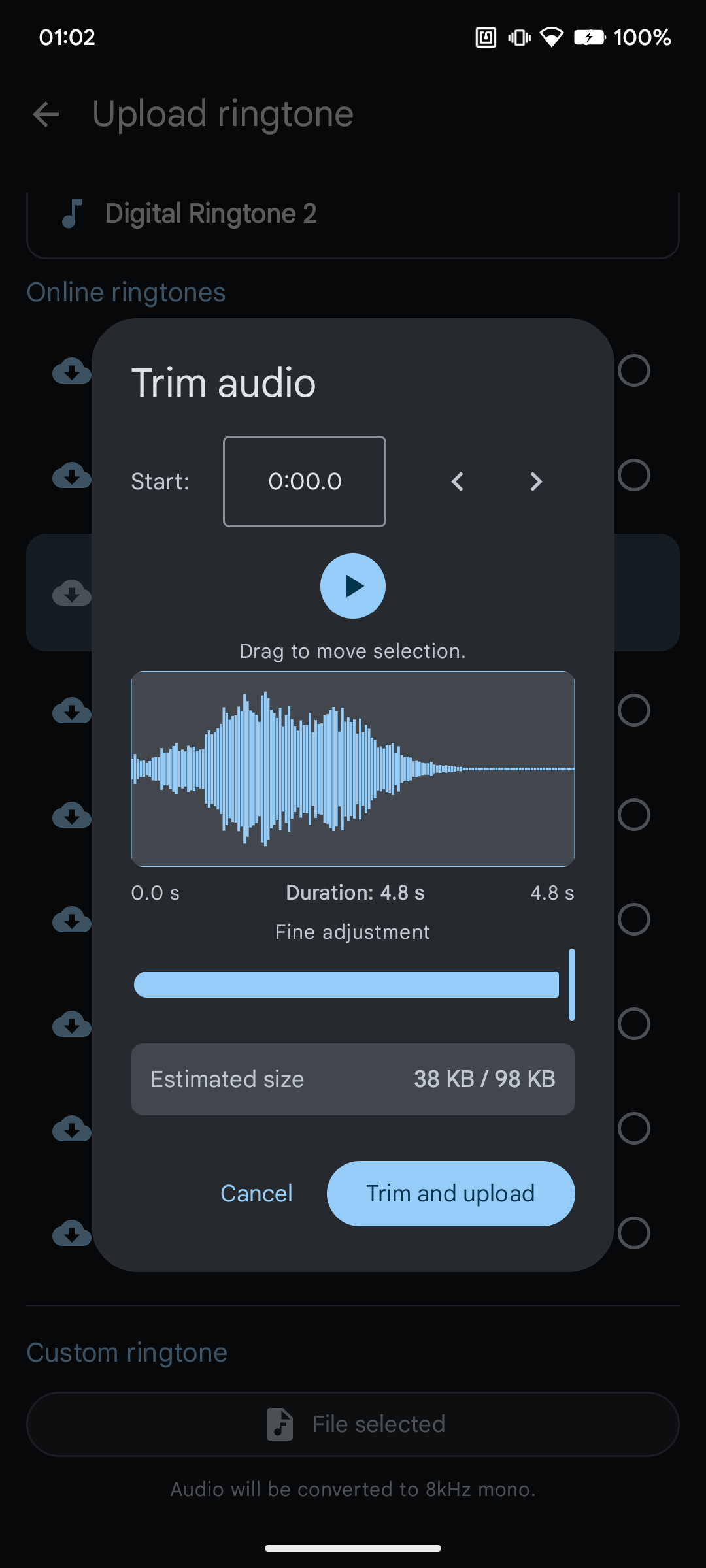

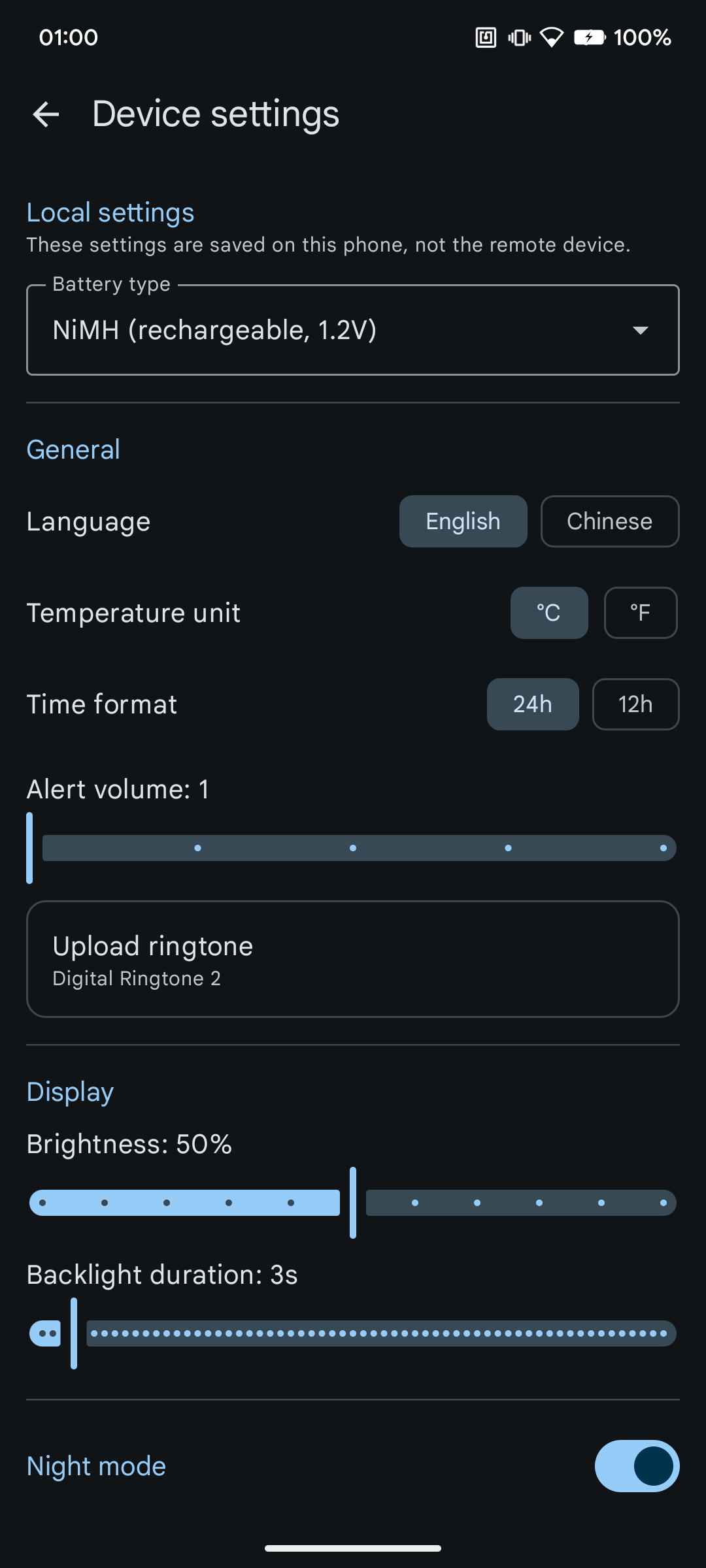

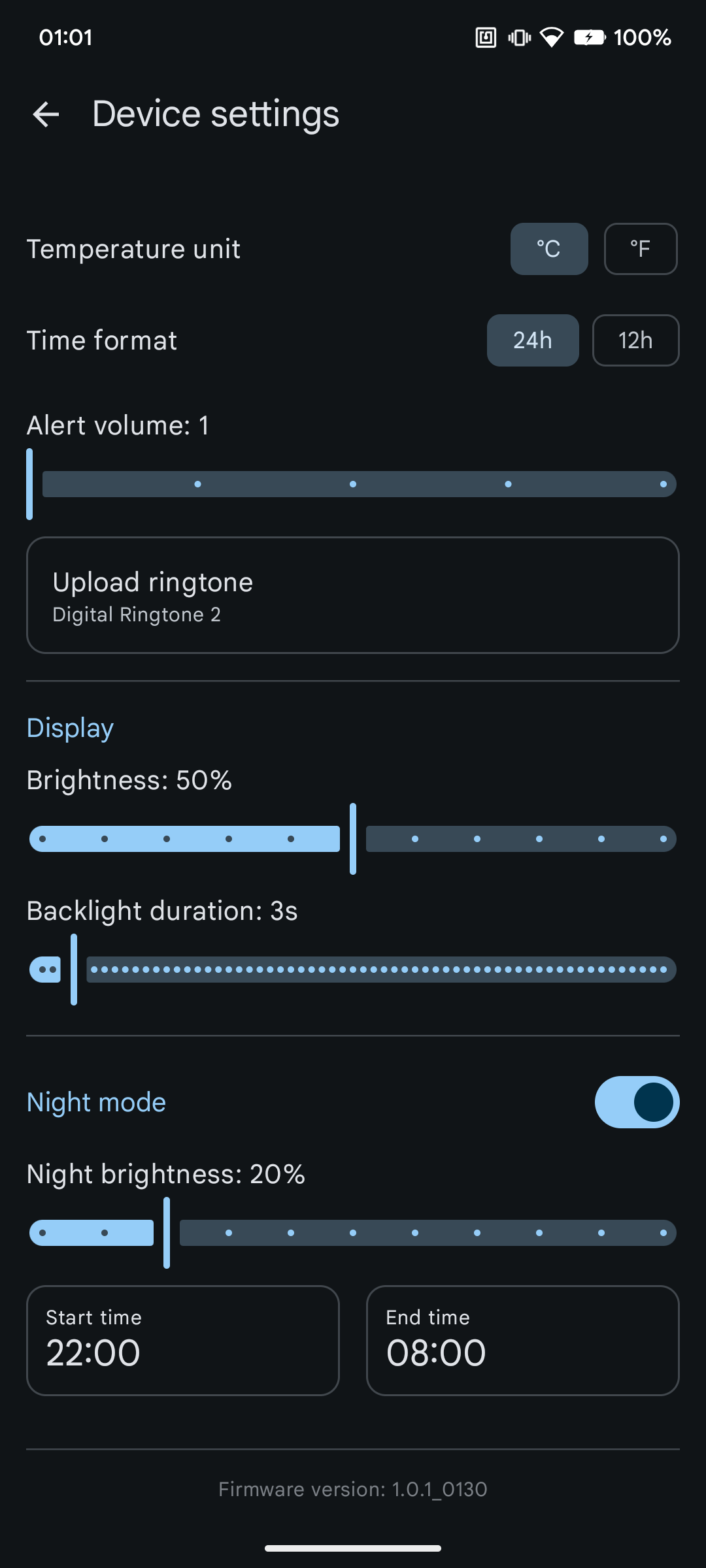

• Interactive real-time previews for brightness and volume settings

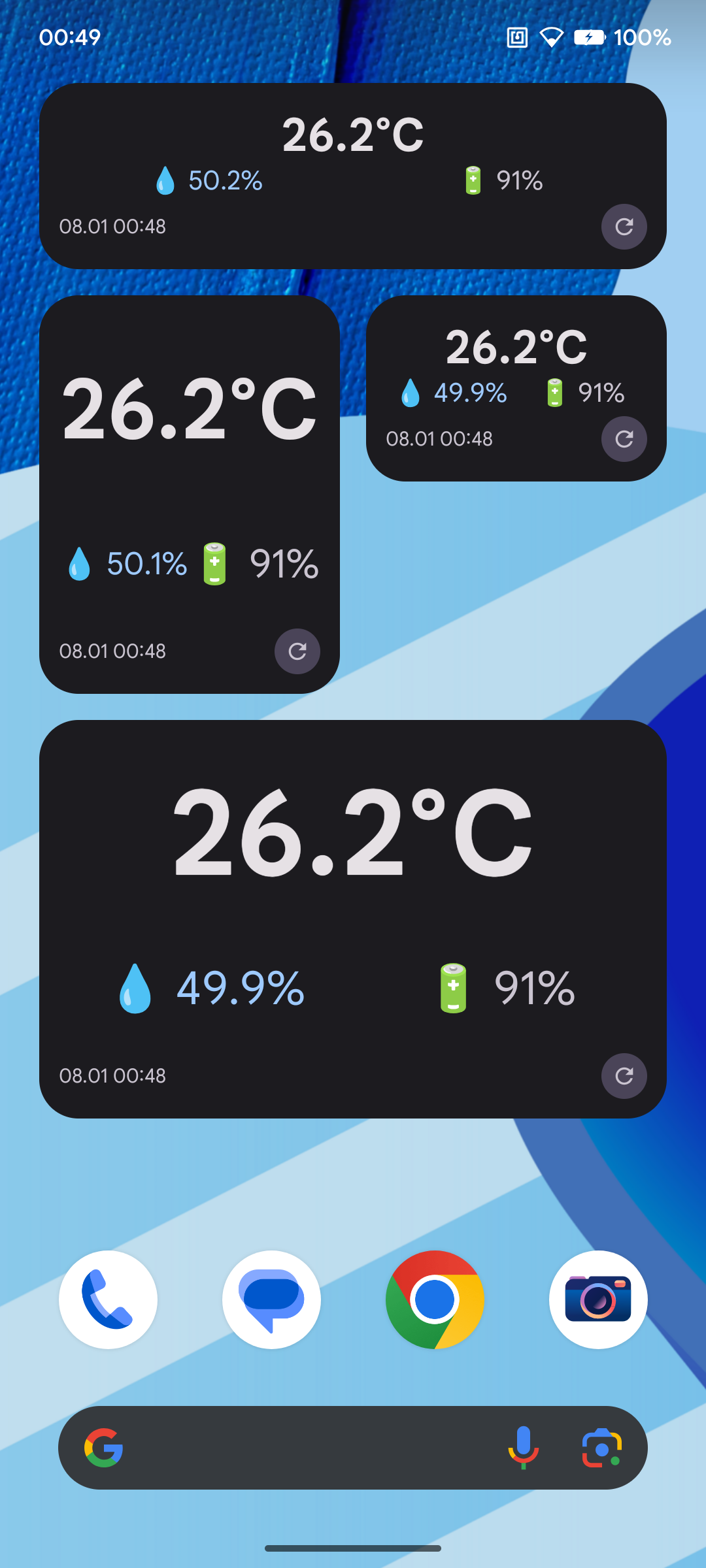

• Widget for displaying sensor data on the home screen
• Configurable background updates to fetch data periodically

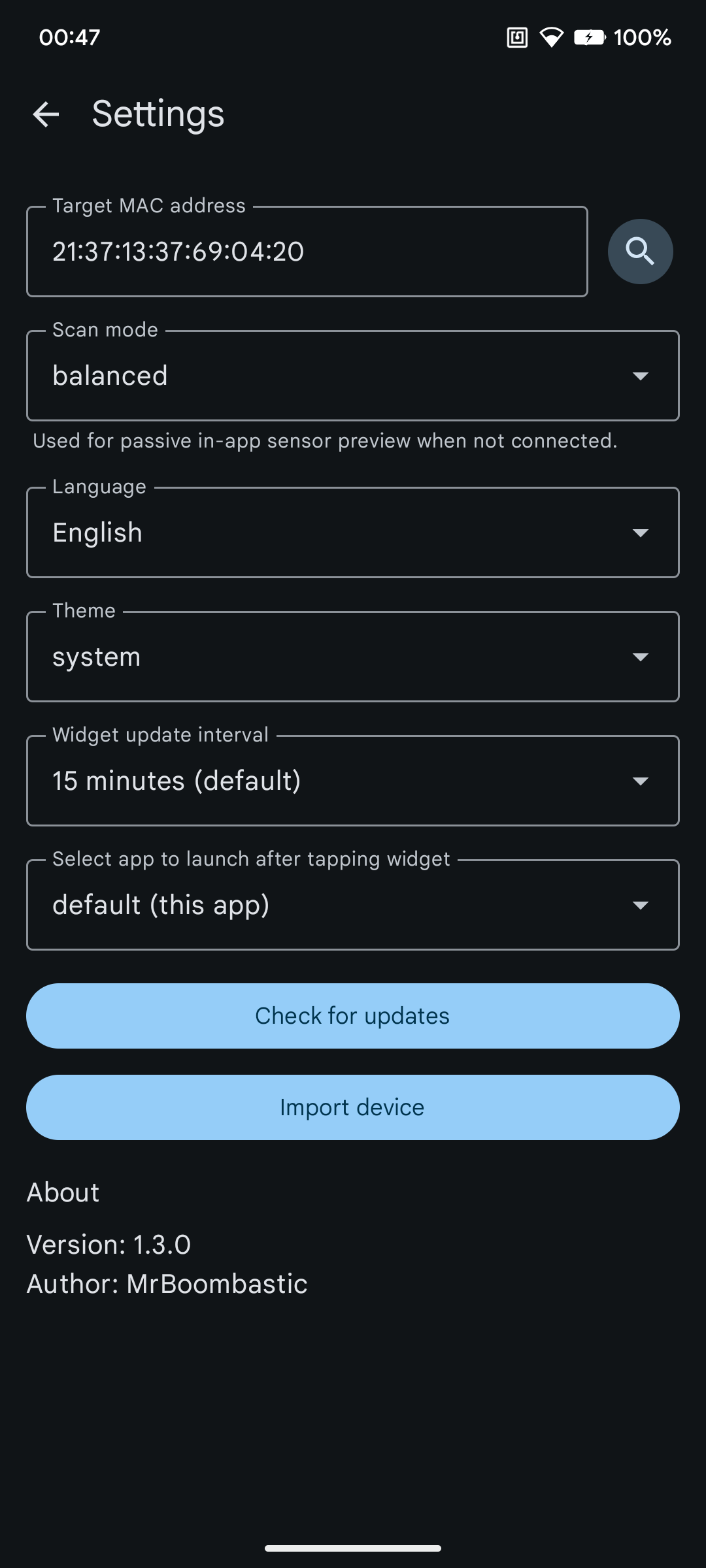

• Settings to customize the device's MAC address, theme (light/dark/system), and language

The application is built with modern Android development technologies and targets recent Android versions.

• Target API: The application targets Android 16 (API level 36) and has a minimum requirement of Android 14 (API level 34)
• UI: Jetpack Compose for a declarative and modern UI
• Background Processing: WorkManager and AlarmManager for scheduling periodic data fetches, ensuring the widget is always up to date

This section describes the reverse-engineered Bluetooth Low Energy (BLE) protocol for the Qingping CGD1 Alarm Clock.

The device uses a custom service structure but relies on standard 128-bit base UUIDs for characteristics in this specific firmware version.

Target Service UUID: 22210000-554a-4546-5542-46534450464d (Advertised)

The device uses a two-step authentication protocol with a 16-byte random token. Once paired, the same token must be used for all future connections.

Flow:

1. Connect to the device and discover services
2. Enable Notifications on Auth Notify (...0002)
3. Send Auth Init to Auth Write (...0001): 11 01 [Token 16B]
4. Wait for ACK on Auth Notify: 04 ff 01 00 02 (success, proceed to step 5)
5. Send Auth Confirm to Auth Write: 11 02 [Token 16B]
6. Wait for final ACK: 04 ff 02 00 00

Device will send you an ACK even when the token is bad. Try to sync time or do other "privileged" action and check if the device will close connection with you.

Token Management:

• For new devices: Generate a random 16-byte token
• For paired devices: Use the stored token from the previous pairing
• Token must match what the device expects (first successful pairing establishes the token)

ACK Response Format: 04 ff [CmdID] [Len] [Status]

• Status 00 = Success
• Status 01 = Failure
• Status 02 = Continue (for Auth Init, proceed to step 5)

After authentication, it is recommended to synchronize the time.

• Command (Auth Write): 05 09 [Timestamp 4B LE]
• Response (Auth Notify): 04 ff 09 00 00 (Success)

The device supports a fixed capacity of 16 alarm slots (indexed 0-15). All alarm/settings operations happen on the Data characteristics.

To create or modify an alarm:

• Command: 07 05 [ID] [Enabled] [HH] [MM] [Days] [Snooze]
• ID: The alarm index (0-15)
• Enabled: 0x01 = On, 0x00 = Off
• HH, MM: Hour (0-23) and Minute (0-59)
• Days (Bitmask):
  • 0x01 = Monday
  • 0x02 = Tuesday
  • 0x04 = Wednesday
  • 0x08 = Thursday
  • 0x10 = Friday
  • 0x20 = Saturday
  • 0x40 = Sunday
  • 0x00 = Once
• Snooze: 0x01 = On, 0x00 = Off

To delete an alarm, overwrite it with FF values (marking it as empty/unused).

• Command: 07 05 [ID] FF FF FF FF FF

• Command: 01 06
• Response: 11 06 [Base Index] [Alarm Entry 1 (5B)] ...
• Alarm Entry: [Enabled] [HH] [MM] [Days] [Snooze]

Note: Device sends multiple packets if needed (up to 4 alarms per packet). All 16 slots are returned, empty slots have FF FF FF FF FF values.

• ACK (after Set/Delete): 04 ff 05 00 00 (Success)

Managed via a single comprehensive payload on Data Write.

• Command: Start with 13 (Set Settings) or 01 02 (Read Settings)

• Set Settings Payload (20 bytes):

  13 01 [Vol] [Hdr1] [Hdr2] [Flags] [Timezone] [Duration] [Brightness] [NightStartH] [NightStartM] [NightEndH] [NightEndM] [TzSign] [NightEn] [Sig 4B]

This byte acts as a bitfield where individual bits control specific boolean settings.

Workaround: Disabling night mode is being done via setting 1-minute night mode (i.e. 00:00 - 00:01). Yup, it's that stupid; even official app does this.

• Command (Data Write): 02 03 [Value]
• Value: Brightness level / 10 (0-10).
• Response (Data Notify): 04 ff 03 00 00 (Success).

Plays a generic "beep" sound for testing volume level (not the user's selected ringtone).

• Command (Data Write): 01 04 (Play at current volume) or 02 04 [Vol] (Play at volume 1-5)
• Response (Data Notify): 04 ff 04 00 00 (Success)

• Target: 00000100-... (Notify)
• Format: [00] [Temp L] [Temp H] [Hum L] [Hum H]
• Values: Little Endian Int16 / 100.0

• Service UUID: 0x180f, Char UUID: 0x2a19
• Format: 1 byte (percentage)

• Command (Auth Write): 01 0d
• Response (Auth Notify): 0b [Length] [ASCII String]

Official apps are using these 4-byte signatures to identify ringtones:

For uploading custom ringtones, this app is using these alternating slot signatures:

Important: Always alternate between slots when uploading new custom audio. Doesn't matter how you name it. The device may reject uploads if the target signature matches the currently active ringtone, but audio itself is different from the one you are uploading.

If you want to host your own ringtone repository, you can create a JSON manifest file. Just point to a JSON file (e.g., https://example.com/rings/index.json), and the app will parse the manifest for ringtone URLs

Manifest Format:

The JSON file should map hex signatures to objects containing at least a "wav" URL. The official app uses an additional "pcm" field, but this app takes the Wave and converts it on its own.

{
  "1d019fd6": {
    "name": "Exotic Guitar",
    "wav": "https://example.com/rings/1d019fd6.wav"
  },
  "6e70b659": {
    "name": "Lively Piano",
    "wav": "https://example.com/rings/6e70b659.wav"
  },
  "8f004886": {
    "name": "Story Piano",
    "wav": "https://example.com/rings/8f004886.wav"
  },
  "26522519": {
    "name": "Forest Piano",
    "wav": "https://example.com/rings/26522519.wav"
  },
  "fdc366a5": {
    "name": "Beep",
    "wav": "https://example.com/rings/fdc366a5.wav"
  },
  "ea2d4c02": {
    "name": "Cuckoo",
    "wav": "https://example.com/rings/ea2d4c02.wav"
  },
  "0961bb77": {
    "name": "Digital Ringtone",
    "wav": "https://example.com/rings/0961bb77.wav"
  },
  "ba2c2c8c": {
    "name": "Digital Ringtone 2",
    "wav": "https://example.com/rings/ba2c2c8c.wav"
  },
  "791bacb3": {
    "name": "Telephone Ringtone",
    "wav": "https://example.com/rings/791bacb3.wav"
  }
}

Key: Hex signature (without 0x prefix).
Value: Object with name (display name) and wav (full URL to WAV file).

Audio Format: 8-bit Unsigned PCM, 8000 Hz, Mono

Step 1 - Init Command (Data Write):

08 10 [Size 3B LE] [Signature 4B]

• Size: Audio length in bytes (Little Endian, 3 bytes)
• Signature: Target ringtone slot signature

Step 2 - Wait for Init ACK (Data Notify):

04 ff 10 00 [Status]

• Status 00 or 09 = Success, proceed with upload

Step 3 - Send Audio Data:

• Packet size: 128 bytes
• Packets per block: 4 (512 bytes per block)
• First packet header: Prepend 81 08 to the audio data
• Wait for block ACK (04 ff 08 ...) after every 4 packets

Step 4 - Completion:

After sending all audio data, the device will apply the new ringtone.

ACK Format (Notify characteristics): 04 ff [CmdSub] [Len] [Status]

When the device disconnects, the GATT status indicates the reason:
